Drysuit Modular Seal System - Supplier

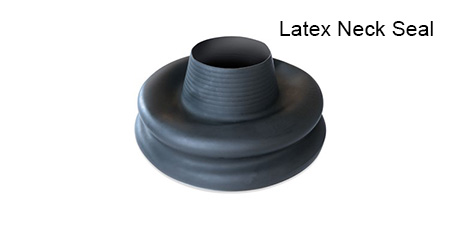

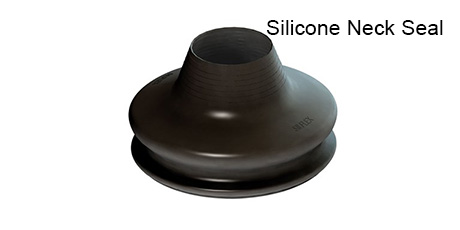

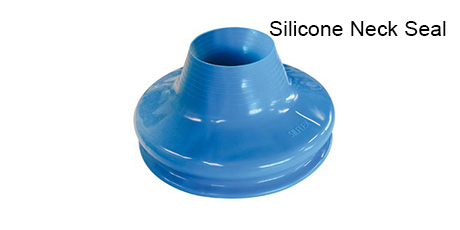

SI-TECH® Drysuit Silicone / Latex Neck Seal

Model:Silicone neck seal is available in two sizes, standard and small, and in two colors, black and blue. Three sizes of latex neck seal, small, medium and large.

Explain: The size of all modular neck seal bases is the same, suitable for 1-3 generation modular neck system, the size difference is reflected in the opening size.

Note: Silicone neck seal is not easy to be allergic, not easy to age, but easy to tear. Latex neck seal is not easy to tear, but it is easy to age and easy to be allergic.

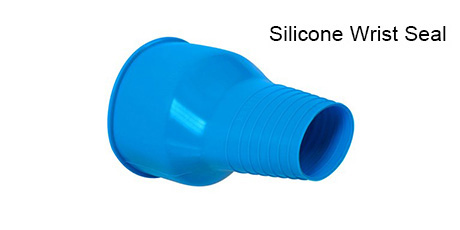

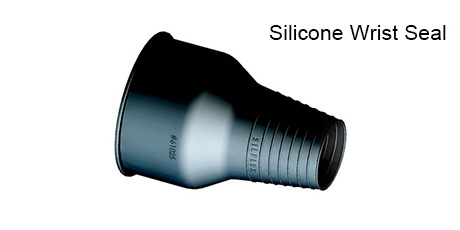

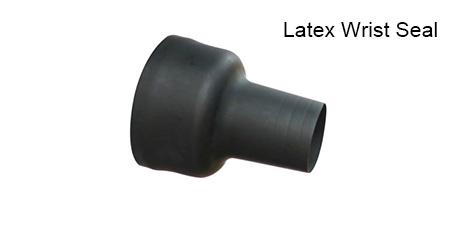

SI-TECH® Drysuit Silicone / Latex Wrist Seal

Model: Silicone wrist seal is available in two sizes, standard and small, and in two colors, black and blue. Four sizes of latex wrist seal, x-small，small, medium and large.

Explain: The size of all modular wrist seal bases is the same, applicable to SI-TECH® modular wrist system, the size difference is reflected in the opening size.

Note: Silicone wrist seal is not easy to be allergic, not easy to age, but easy to tear. Latex wrist seal is not easy to tear, but it is easy to age and easy to be allergic.

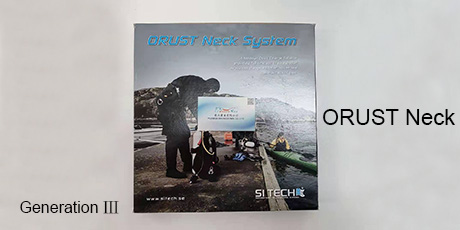

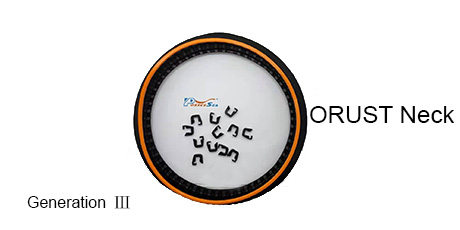

SI-TECH® Drysuit Modular Neck System (Ⅲ)

Explain: Including neck seal (optional silicone or latex), neck ring, lock ring and clips (12 pcs). Tool is no longer needed for installation of the neck seal, the seal and lock ring can easily be mounted into the PU-ring by hand.

Features: Flexibility and softness are better than the previous second-generation products, and are more suitable for thin drysuits.

Note: This is the modular neck seal system we mainly use at present.

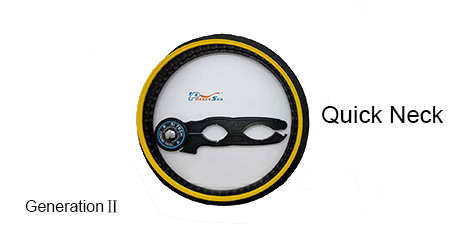

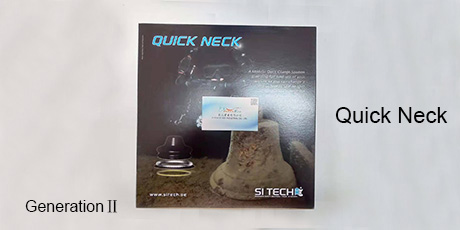

SI-TECH® Drysuit Modular Neck System (Ⅱ)

Explain: Including neck seal (optional silicone or latex), neck ring, lock ring and combi tool.

Features: More flexible than the first-generation products, suitable for thin drysuits.

Note: It has been seldom used at present, but it also provides maintenance and replacement services.

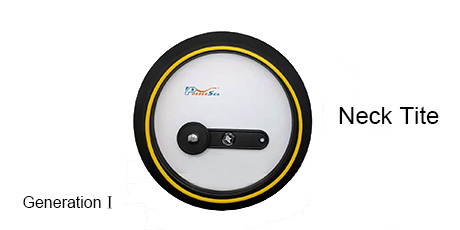

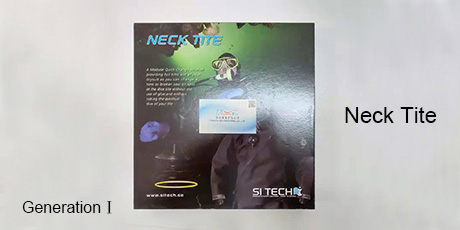

SI-TECH® Drysuit Modular Neck System (Ⅰ)

Explain: Including neck seal (optional silicone or latex), neck ring, lock ring and combi tool.

Note: It has been seldom used at present, but it also provides maintenance and replacement services.

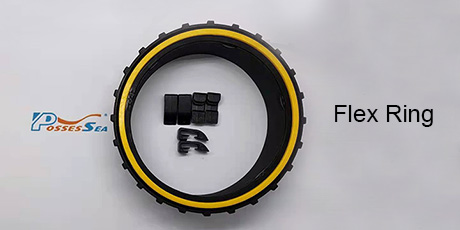

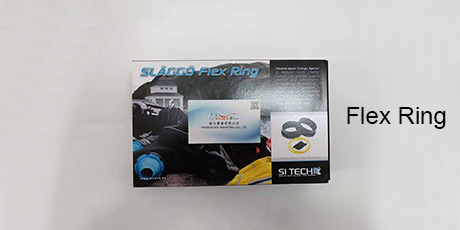

SI-TECH® Drysuit Modular Wrist System (Flex Ring)

Explain: Includes wrist seal (optional silicone or latex), PU-ring, spanner ring and clips (12 clips per set).

Features: It has high comfort and circular shape, so there is no need of indexation/orientation during installation. Use clips to fix and easy to disassemble.

Note: When squeezed, it will deform and leak easily. It is often used for breathable tri-laminate drysuits.

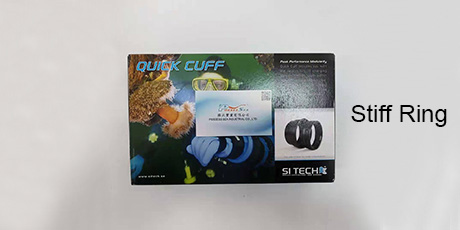

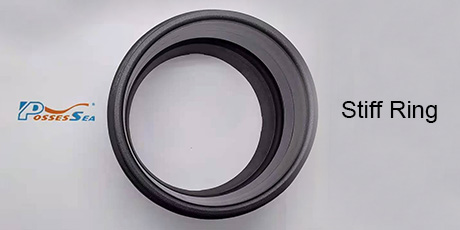

SI-TECH® Drysuit Modular Wrist System (Stiff Ring)

Explain: Includes wrist seal (optional silicone or latex), wrist Ring and stiff Ring.

Features: High strength and circular shape, so no positioning is required during production and installation.

Note: Commonly used in butyl tri-aminate drysuits.

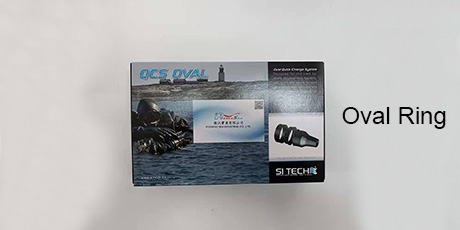

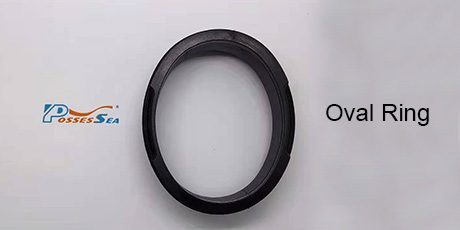

SI-TECH® Drysuit Modular Wrist System (Oval Ring)

Explain: Includes wrist seal (optional silicone or latex), PU-ring and oval stiff ring.

Features: Narrow and oval shape that makes it compact and comfortable, with the smallest volume.

Note: Commonly used in surface drysuits.
