Drysuit Zipper - Supplier

We purchase YKK® PROSEAL® (original BDM brand, existing BDM and YKK two logos) and AQUASEAL® series drysuit zippers. TIZIP® MasterSeal and SuperSeal series drysuit zippers are also our common choices. Usually we use BDM drysuit zippers (different models and different coatings) on neoprene drysuits and butyl tri-laminate drysuits. YKK® AQUASEAL® and TIZIP® SuperSeal series drysuit zippers are used for butyl tri-laminate drysuits or rescue drysuits, TIZIP® MasterSeal series drysuit zippers are mostly used for rescue drysuits. At the request of customers, we also provide maintenance and replacement services for related products.

There are many options for the handle of the drysuit zipper, including pull handles, drawstrings, handle loops, T-bars, etc. The type and length can be customized when ordering from the zipper factory. We can also assemble and transform the drysuit zipperaccording to the needs of customers, and custom handles are also available. However, the modification and customization are limited to the handle part, and there is no way to change the main part of the zipper (the slider and the zipper fabric).

YKK® PROSEAL® Zipper

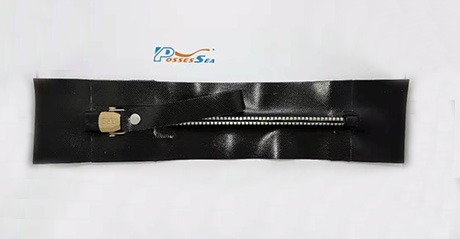

YKK® PROSEAL® Drysuit Zipper (BDM)

Explain: The top drysuit zipper made of nickel silver elements, BDM is now under the YKK® banner.

Sealing Strength: 0.2 - 1.0 bar.

Slider: 4 / 8 / 12 optional (Bronze), BDM and YKK LOGO optional.

Tape: Base - Polyester，Coating - CR (Chloroprene) / PU (Polyurethane) / PVC.

Minimum Length: 20cm.

YKK® AQUASEAL® Zipper

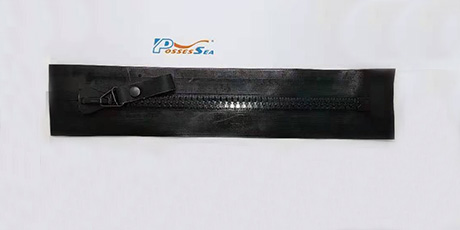

YKK® AQUASEAL® Drysuit Zipper

Explain: AQUASEAL® zippers are made from a high quality plastic which is roughly half the weight of a conventional metal zipper.

Sealing Strength: 0.05 - 0.3 bar.

Slider: 5 / 10 optional (Plastic / Stainless), variety of handles are available.

Tape: Base - Polyester，Coating - PU (Polyurethane).

Minimum Length:15cm。

TIZIP® MasterSeal Zipper

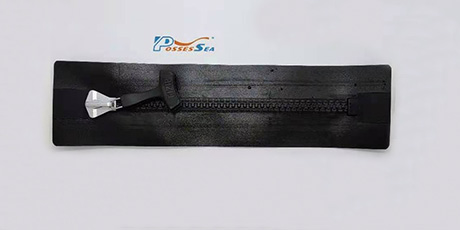

TIZIP® MasterSeal Drysuit Zipper

Explain: Plastic teeth zipper.

Sealing Strength: 0.2 - 0.7 bar.

Slider: 6 / 10 optional (Polymer / Metal), variety of handles are available.

Tape: Coating - PU (Polyurethane).

Minimum Length: 13cm (#6), 23cm (#10).

TIZIP® SuperSeal Zipper

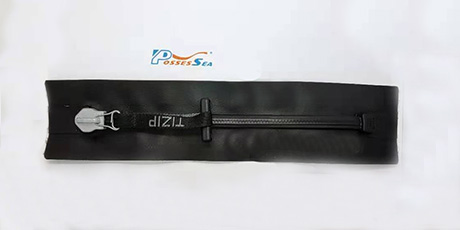

TIZIP® SuperSeal Drysuit Zipper

Explain: Plastic teeth zipper

Sealing Strength: 0.7 bar.

Slider: 10 optional (Metal), variety of handles are available.

Tape: Coating - PU (Polyurethane).

Minimum Length: 20cm.

Drysuit Type:

Type	Neoprene Drysuit	Butyl Drysuit	Breathable Drysuit
Material	Neoprene Fabric	Butyl Fabric	Breathable Fabric
Process	Glue & Blind Stitch + Glue Tape	Flatlock Stitch + Glue Tape	Flatlock Stitch + Hot Tape
Firmness	Good	Good	Ordinary
Easy to Carry	Not Good	Ordinary	Good
Thermal Insulation	Good	Little	Little
Valve	Inflation Valve, Exhaust Valve	Inflation Valve, Exhaust Valve	No or Dump Valve
Applications	Diving	Diving	Water Sports, Rescue

Note: Breathable tri-laminate drysuit are not suitable for diving, but because of its light and low-cost characteristics, many brands have launched ultra-lightweight travel drysuit (equipped with inflation valve and exhaust valve) made based on breathable tri-laminate fabric, but it can generally only be used for diving at a depth of no more than 10 meters. In fact, there are also lightweight options for butyl tri-laminate fabric, but the price is more expensive than breathable tri-laminate fabric.

Drysuits Leaking and Maintenance Problems:

All our drysuits are tested for pressure leaks in a test pool before leaving the factory to ensure that the drysuits do not leak when shipped, but the harsh transportation environment (Abnormal collision and squeezing) and incorrect storage (abnormal squeezes) occasionally cause water leaks (rarely found).

Unless drysuits are rarely used, water leakage is practically impossible to avoid. Due to the use environment, strength, habits, matching, cleaning and storage methods and occasions, component life and aging and other factors, many drysuits are used after dozens to hundreds of times, it will happen water leaks.

Leaking does not mean that drysuits can no longer be used, most of the water leakage conditions can be repaired. We provide warranty services (quality problems) and repair services (use problems). Unless the aging material has no repair value, everything else can be repaired.

Under normal circumstances, common simple problems are recommended to customers to repair by themselves (such as small leaks, etc.) to save time and transportation costs. We have optional repair kits when we leave the factory, and various repair kits are also available on the market. If there is a big problem, it is recommended that the customer return to the factory for repair (for example: replacing the waterproof zipper, repairing a large break, etc.).
